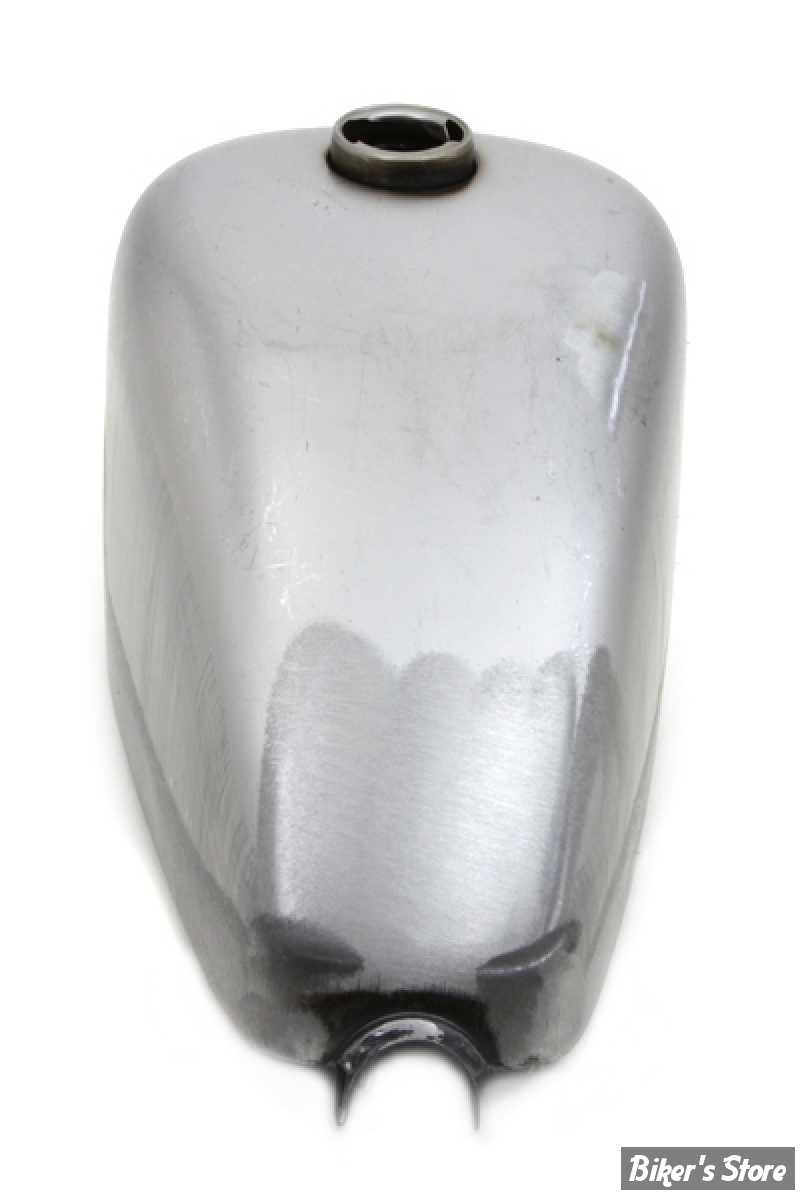

RESERVOIR PEANUT - 2.5 GALLONS - V-TWIN / Wyatt Gatling - Chopper Style 2.5 Gallon Gas Tank - BOUCHON A BAILLONETTE

Réservoir Universel - La Pièce

Chopper style gas tank has a 2.5 gallon capacity and accepts a Bayonet style gas cap.

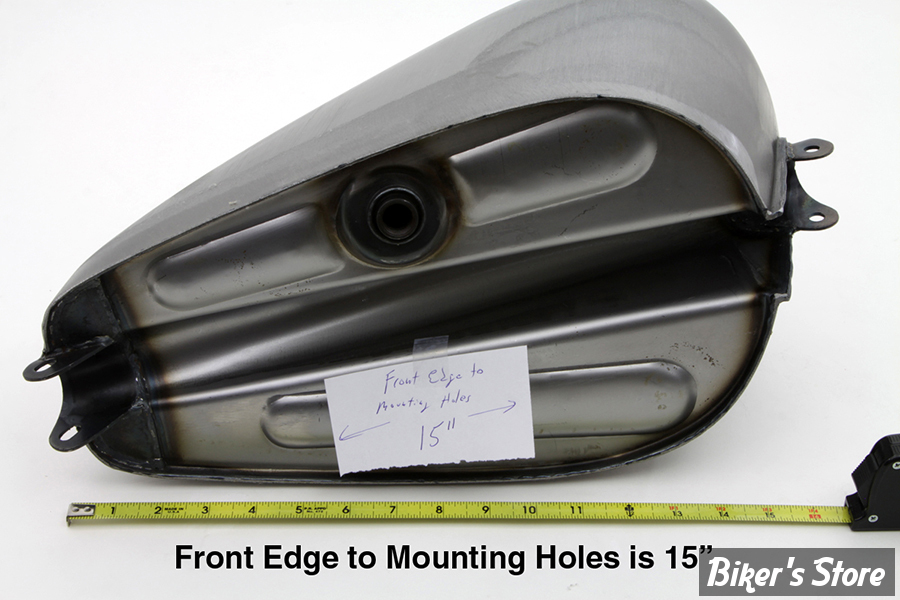

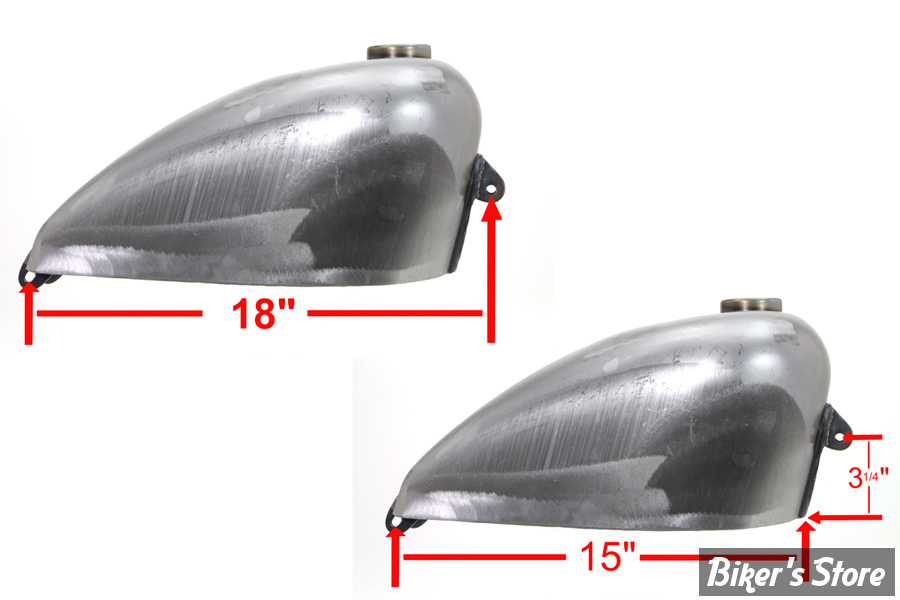

Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams or joints, as this may cause leaks. We suggest using Kreem gas tank combo kit to clean, condition and seal. This will help to stop leaks and prevent corrosion. Check petcock opening, making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. The front edge to the mounting holes measures 15", the front bottom edge to the upper mounting holes measures 3-1/4", and center to center from the front to rear mounting holes measures 18". *NOTE: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.

More Information

Measurements

Top Length: 17" Bottom Length: 15-1/4" Rear Width: 4-3/4"

Manufacturer Wyatt Gatling

Origin Imported

Style Chopper

2026 Catalog Pages 1240

Tech Note

Suggested to use with #38-7033, Replica Eaton Gas Cap Vented

Suggested to use with #35-0405 Petcock Right Outlet Chrome.

Other Notes

Front Width: 9" Rear Height: 1-3/4" Front Height: 7-5/16"

Front Tunnel Height: 3-1/4" Rear Tunnel Height: 1/2" Tunnel Length: 16-3/4"

The tanks are delivered unpainted and unprimed. Before painting and final assembly, we advise you: The tanks are usually waterproof, regardless of whether they are custom or spare OEM. Problems usually occur after assembly. Reason why you must FIRST carry out a pressure test and do an assembly test BEFORE painting. In addition, it is imperative to treat the inside of the tank with a special product, to be ordered separately: CC3991004.
