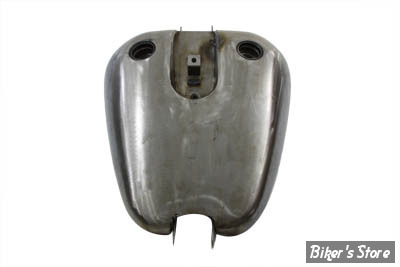

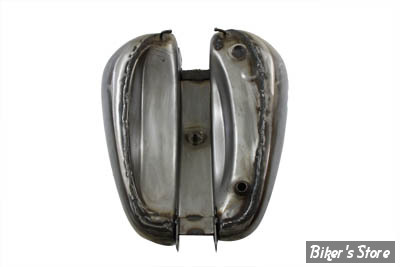

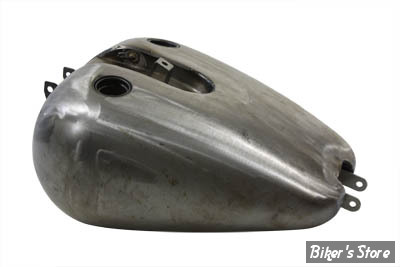

RESERVOIR DYNA - TYPE ORIGINE - BOBBED - DYNA FXDWG 96/03 - 5.1 GALLONS - 61039-96

410,28 € TTC

Réf : V/38-0829

V-Twin

Pour Dyna FXDWG de 1996 à 2003 à carburateur et deux bouchons à vis (non compris). Ce réservoir ne ré-utilise pas la jauge d'essence d'origine. La Pièce

Les réservoirs  sont livrés non peints et non apprêtés. Avant la peinture et le montage final, nous vous conseillons : Les réservoirs sont  généralement  étanches, qu’importe qu’ils soient custom ou OEM de rechange. Les problèmes surviennent en général après le montage. Raison pour laquelle il faut D’ABORD procéder à un test pression et faire un test de montage AVANT la peinture. De plus, il est impératif de traiter l'intérieur du réservoir par un produit spécial, à commander séparément : CC3991004.

VT No: 38-0829
Custom gas tank does away with the stock fuel gauge and utilizes two right handed screw bungs to accept late style gas caps. Fuel capacity is 5.1 gallons.
Order gas caps separately. The tank uses a stock style FXDWG dash console. Tank is not for fuel injected models. Check the tank for flaws and fit before painting. It requires sanding and primer before painting. Do not grind or sand the seams or joints. Check the petcock opening, making sure the petcock can be easily installed. The petcock should be masked or plugged during painting for easy installation of petcock. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
Fits:
FXDWG 1996-2003

Measurements
Top Length: 18-1/2" Bottom Length: 18" Rear Width: 8"

Front Width: 15" Rear Height: 2" Front Height: 8-1/2"

Front Tunnel Height: 6" Rear Tunnel Height: 1-1/2" Tunnel Length: 18-3/4"

Between Front Mounts: 2-3/4" Between Rear Mounts: 2-3/4"
