RESERVOIR CHOPPER - V-TWIN / COFFIN - COFFIN STYLE 2.2 GALLONS

Réservoir d'une capacité de 2.2 gallons / 8.30 litres. La Pièce

VT No: 38-0172

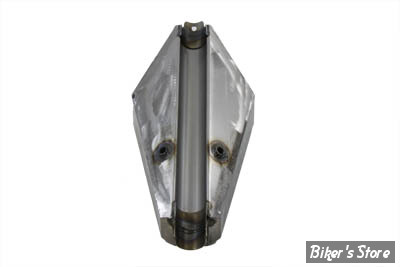

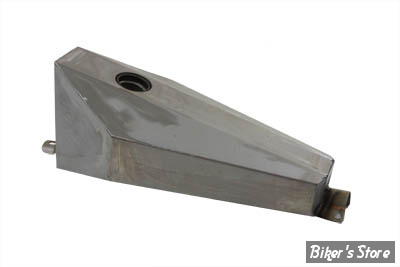

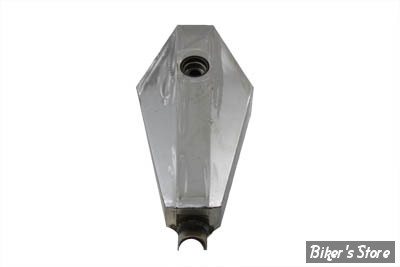

Raw gas tank accepts a left or right side 1/4" National Pipe Thread petcock, and has a fuel capacity of 2.2 gallons. It has a single front tab and a rear U-bracket.

Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion. Check the petcock opening, making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.

Fits:

Custom application for 1-1/2" top frame tubes

UOM: 1 - EA

Top Length: 18" Bottom Length: 17" Rear Width: 4"

Front Width: 3" Rear Height: 3" Front Height: 8"

Front Tunnel Height: 1.5" Rear Tunnel Height: 1.5" Top Tunnel Width: 1-13/16"

Bottom Tunnel Width: 1-13/16" Tunnel Length: 17"
