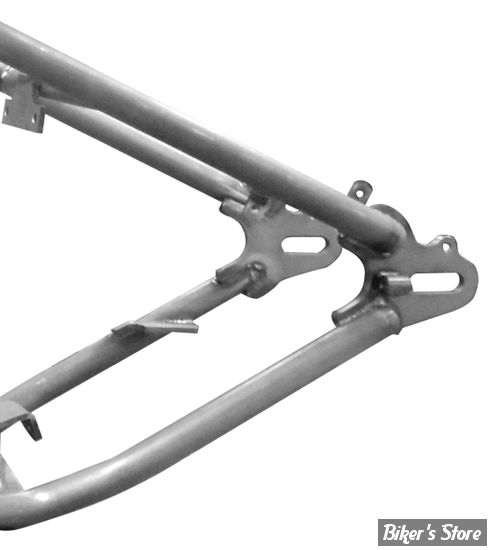

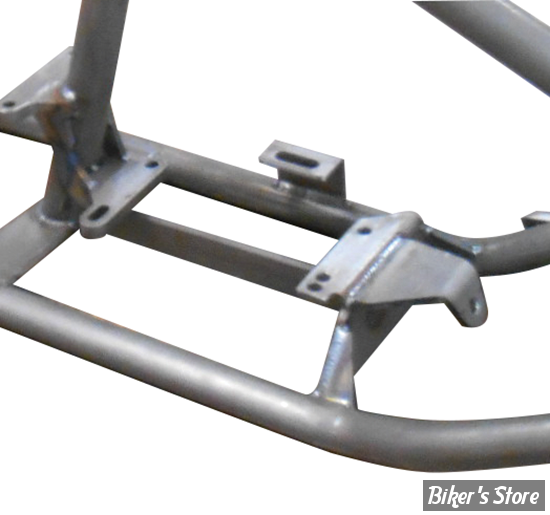

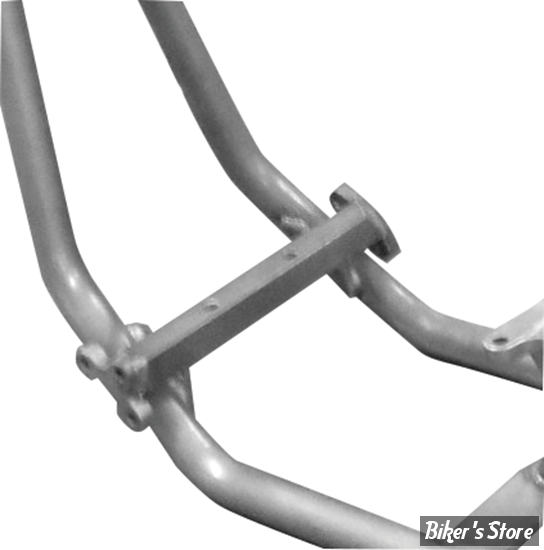

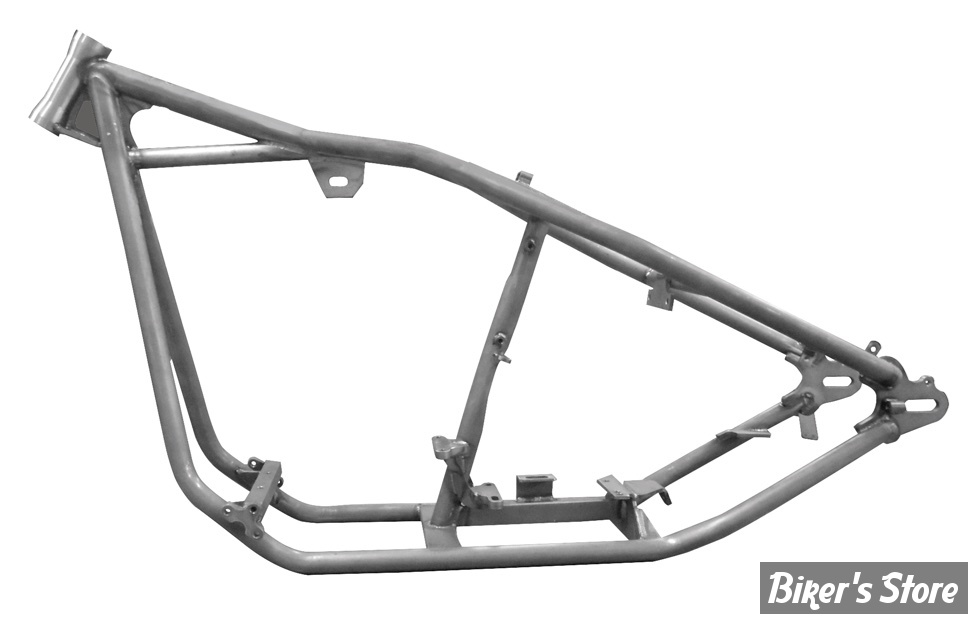

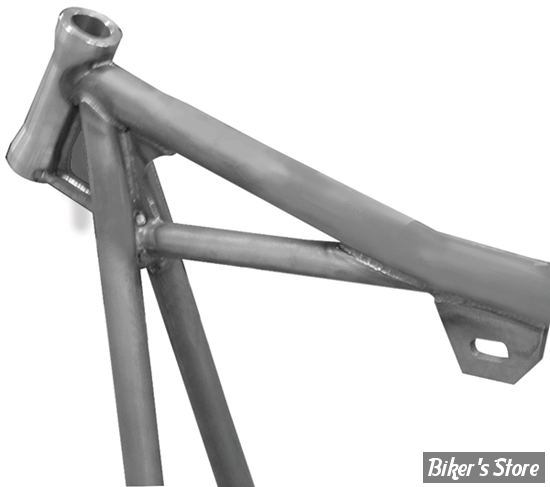

ECLATE O - PIECE N° 45 - CADRE RIGIDE MID USA - 30° - BOBBER STYLE RIGID FRAME - MID USA
Pour BigTwin 4 ou 5 vitesse Panhead / Shovelhead / Evolution. La pièce
Angle de colonne : 30°
Stretch tube inférieur : 0"
Diametre tube inférieur : 1 1/4"
Stretch tube supérieur : 0"
Diametre tube supérieur : 1 1/2"
Largeur possible de pneu arrière : 130/140/150
Sortie de BDV : A gauche.
Diametre de l'axe de roue : 3/4"
-
FRAIS DE PORT : par Transporteur, cout en fonction de la destination.
-
Manufactured to accept Panhead, Shovelhead or Big Twin Evolution.
30 Degree Rake. Zero Downtube Stretch.
1 1/2" O.D. backbone.
1 1/4" O.D. cradle and tail section.
Can use up to .200" taller stroker engines.
Use either 4, or 5/6 speed transmissions.
Required Components
4 or 5 speed transmission and mounting plate found in Section 7.
Chain final driive found in Section 7.
Late 1987/1999 Softail style rear brake assembly found in Section 5.
Evolution style oil tank and mounts found in Section 8.
Fork cups and bearings found in Section 3.
Softail 1984/1985 rear axle found in Section 5.
Softail 1987/1999 axle adjusters found in Section 5.
Softail 1986/1999 axle spacer/adjuster found Section 5.
Includes a Manufacturer's Statement of Origin (MSO)
Standard Width with 30 Degree Rake, Zero Downtube Stretch!
RestoMod Frames by Mid-USA®
