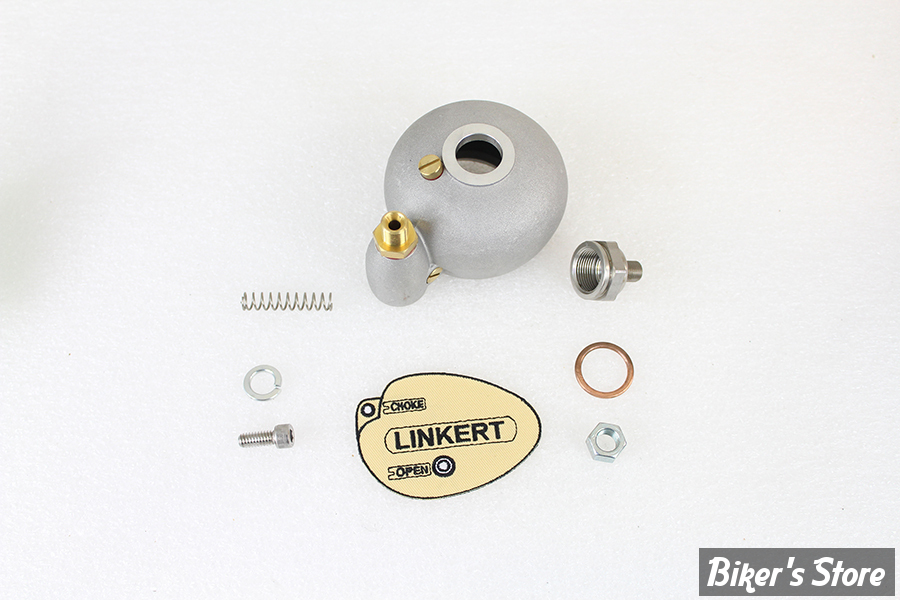

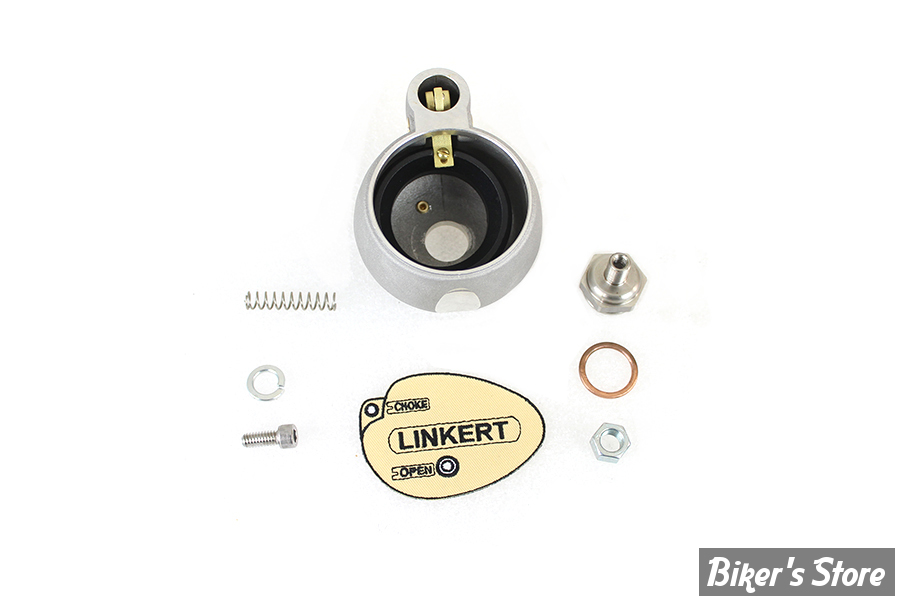

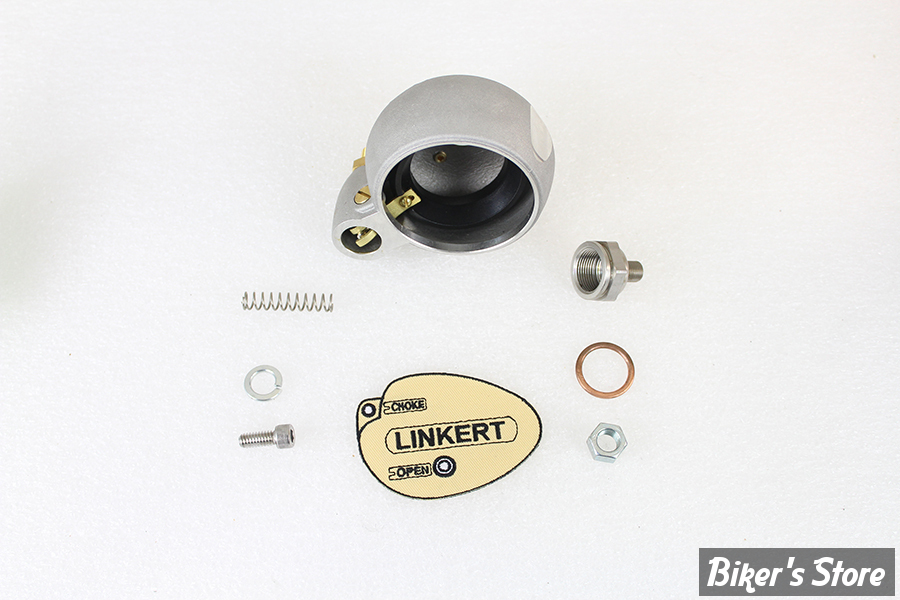

Overhead valve bean pot float bowl features a milled flat top and includes the bowl nut.

Components are fylly assembled. Customer must install per service manual. Larger diameter adds 1.45 cubic inches to hold additional fuel. Extra capacity for racing applications. Has 9/16 x 20 hex plug at needle valve opening. Fits all brass linkert carburetors for additonal fuel capacity! NOTE: Original "Bean Pot" linkert bowl design was developed by Tom Sifton Motorcycle Products. *NOTE: Float bowl with drain screw includes unsinkable black nitrophyl linkert float with our unique 1 piece float arm in brass for smooth action. Pivot pin with two caps, stainless steel needle with matching brass seat assembly installed. Needle valve seat opening is milled flat and sealed by carburetor body after assembly.

More Information

FITS

EL 1948-1952

Special application for linkert carburetors

FL 1948-1965

-

Replacement Items

35-1286 - OHV Linkert "Bean Pot" Float Bowl Kit

35-0368 - Linkert Carburetor Bowl Lock Nut with Drain Zinc
