Phare Cult Werk - Application universelle, ou pour Sportster de 2004 à 2019. Corps noir / Cerclage noir / Optique transparent- 12V de 60/55W. ampoule H4 et veilleuse. La pièce

-

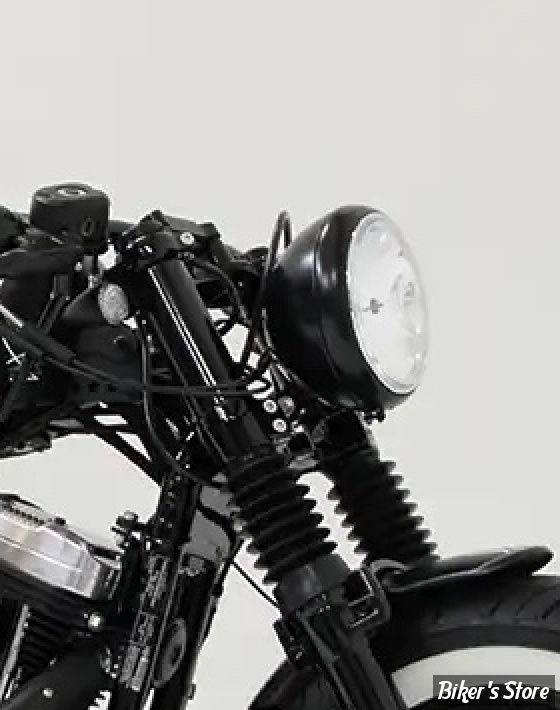

Le phare Cult-Werk est compatible avec tous les modèles Harley-Davidson. Il se fixe au centre du té de fourche inférieur à l'aide d'un seul boulon. Phare H4 de 7" avec boîtier en métal noir mat, réflecteur prismatique et lentille transparente pour un éclairage optimal. Installation très simple et rapide: il suffit de remplacer le phare d'origine Harley!

-

Year of construction: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2019

Brand: Harley-Davidson

Model: 883 (XL 883), 883 Custom (XL 883), 883 Iron (XL 883), 883 Low (XL 883), 883 R (XL 883), Superlow (XL 883), 1200 Custom (XL 1200), 1200 Iron (XL 1200), 1200 Nightster (XL 1200, 1200 Roadster (XL 1200), 1200 Seventy-Two (XL 1200), Forty-Eight (XL 1200), Forty-Eight Special (XL 1200)

Model Type: Sports

-

Product information "7" headlight, black with clear glass (suitable for Harley-Davidson models: Sportster)"

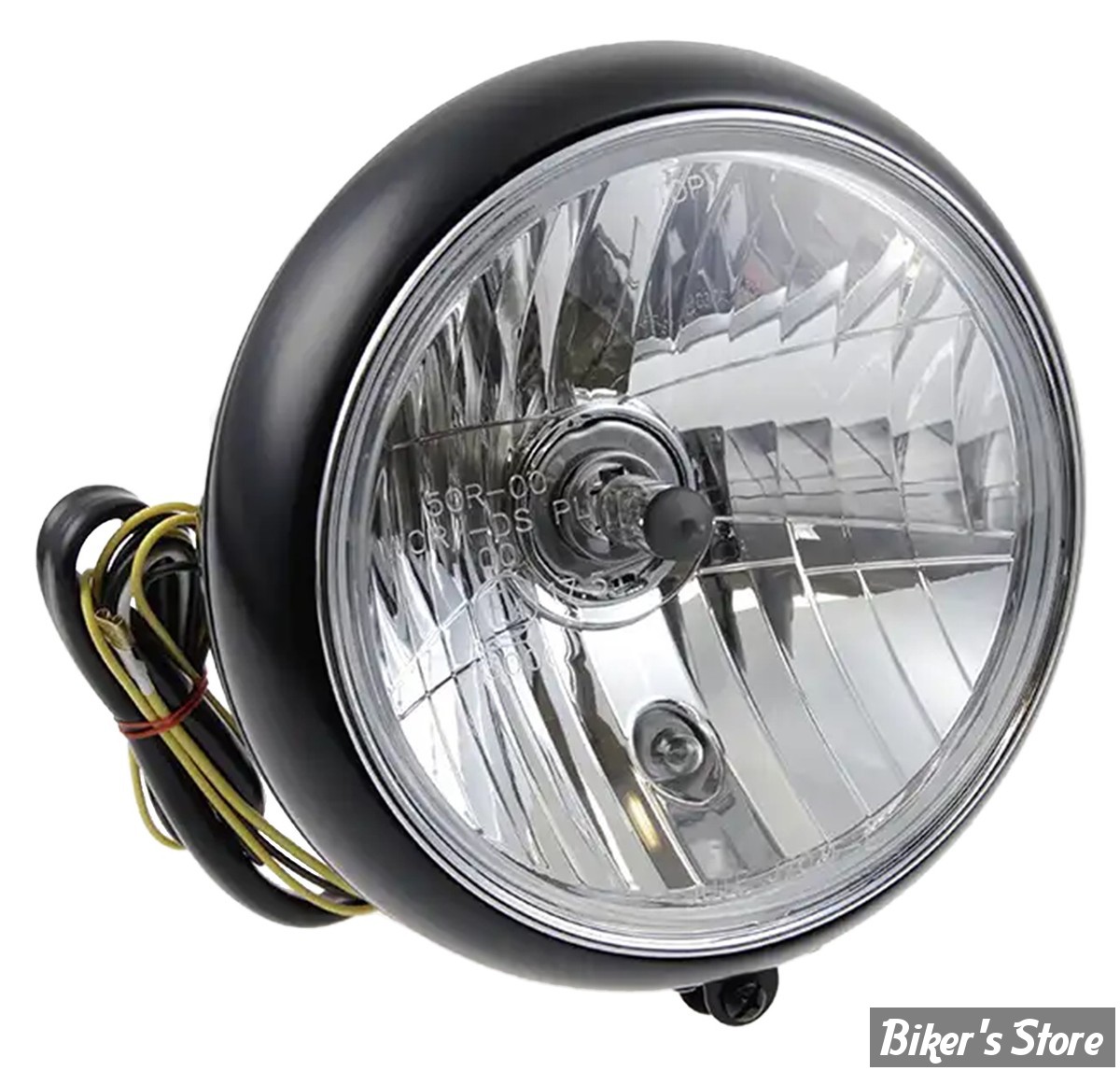

The headlight from Cult-Werk is suitable for all Harley-Davidson models where it is attached to the middle of the lower fork bridge with a screw. In addition, our side speedometer holder (HD-SPO037) must be used on models to create enough space for the significantly larger headlight! 7" H4 headlight in a black matt metal housing with prism reflector and clear lens for optimal light output. Very simple and quick installation, simply exchange for the original Harley headlight!

< p class="MsoNormal">Includes 12V H4 60/55 W bulb and parking light. Total diameter 205 mm and depth 120 mm. Dimensions of bracket: 20x32x60 mm. With ECE / T√úV.

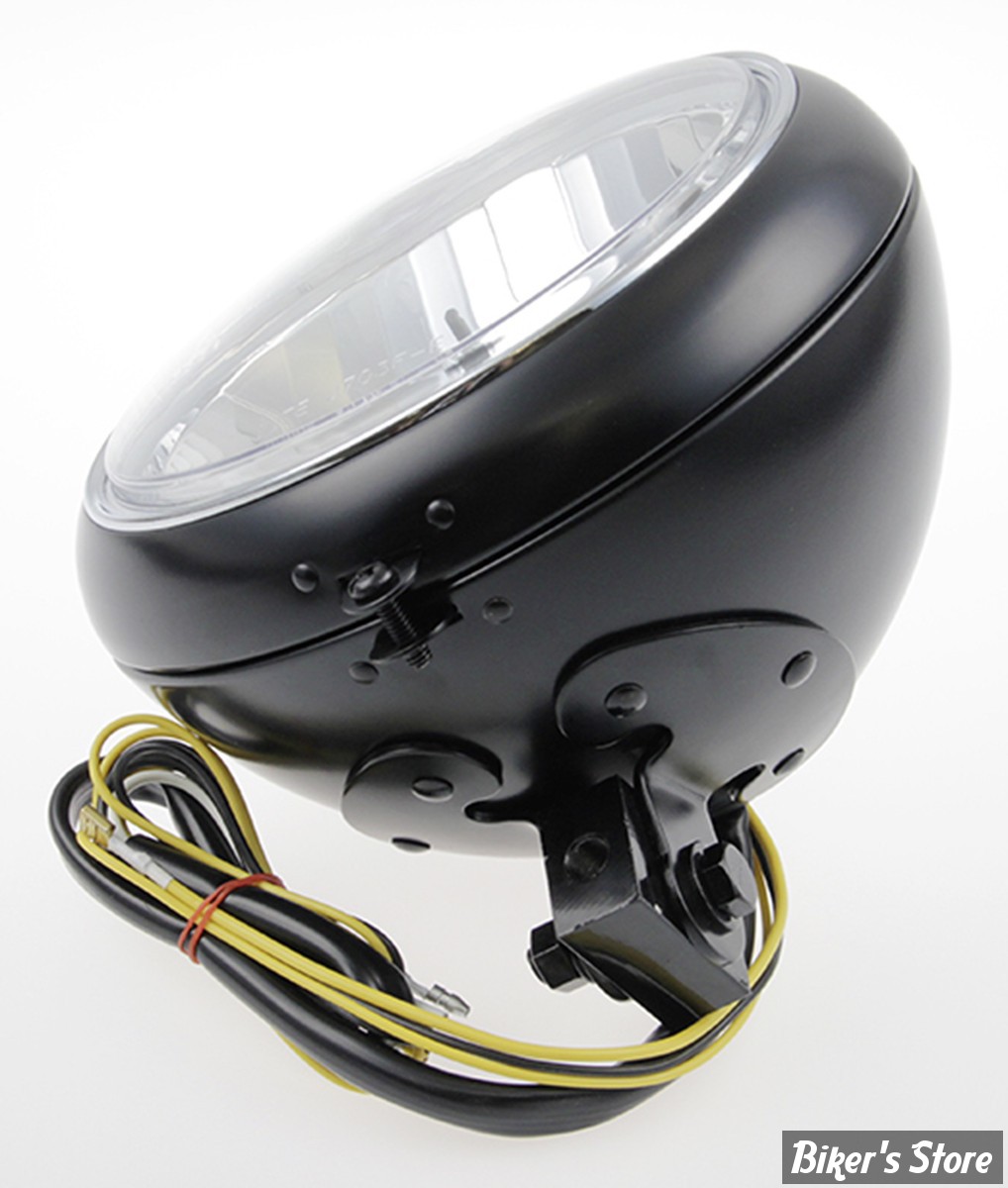

Cable assignment:

H4 bulb 4 cables in black case:

Thick black cable = ground

Yellow cable = low beam

White cable = high beam

Thin black cable  = additional lighting ( if necessary)

Separate yellow cable for the H4 bulb for connection as an additional light (if necessary)

2 cables for Parking light:

Black cable = ground

Yellow cable = plus
