V-Twin Mfg. reproduction du réservoir de 3,5 gallons (13,2 litres) vitesses à main, longtemps indisponible, tel qu'utilisé sur les Big Twin à soupapes en tête de 1941 à 1946. Pour robinet, emblêmes, supports, bouchons, conduite d'essence et le guide de levier de vitesse d'origine. Aucun montage des emblèmes. Nécessite une cale pour donner un alignement correct du tableau de bord Cat-Eye, du montage de la conduite de carburant et pour obtenir la hauteur correcte.

-

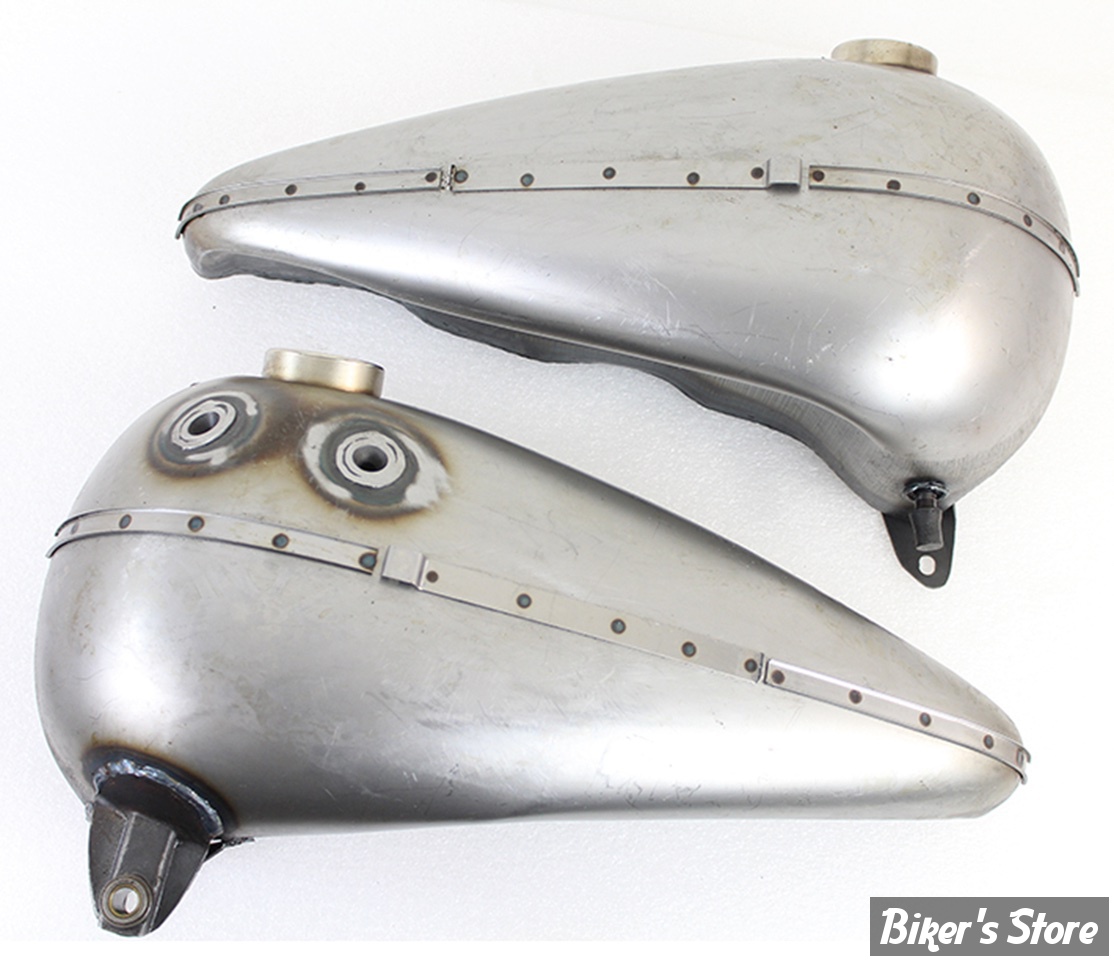

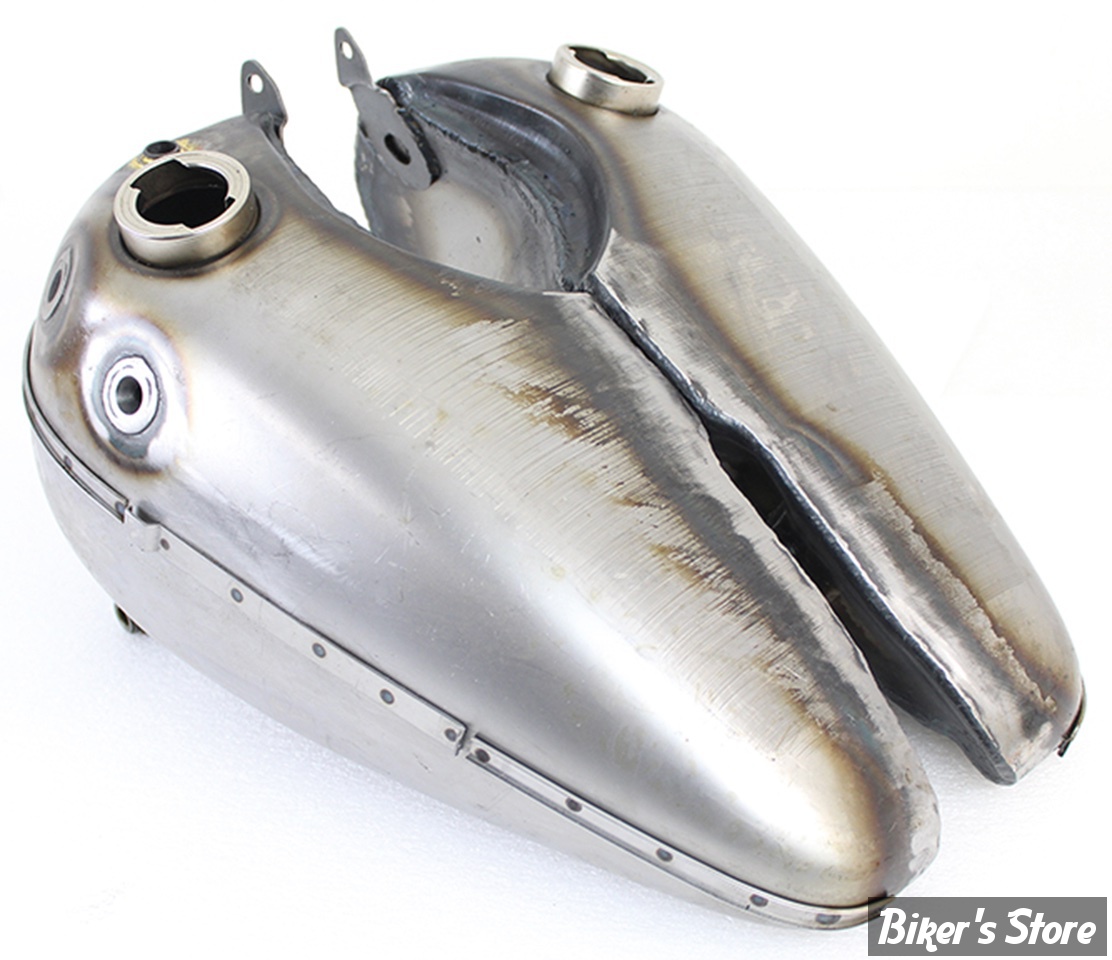

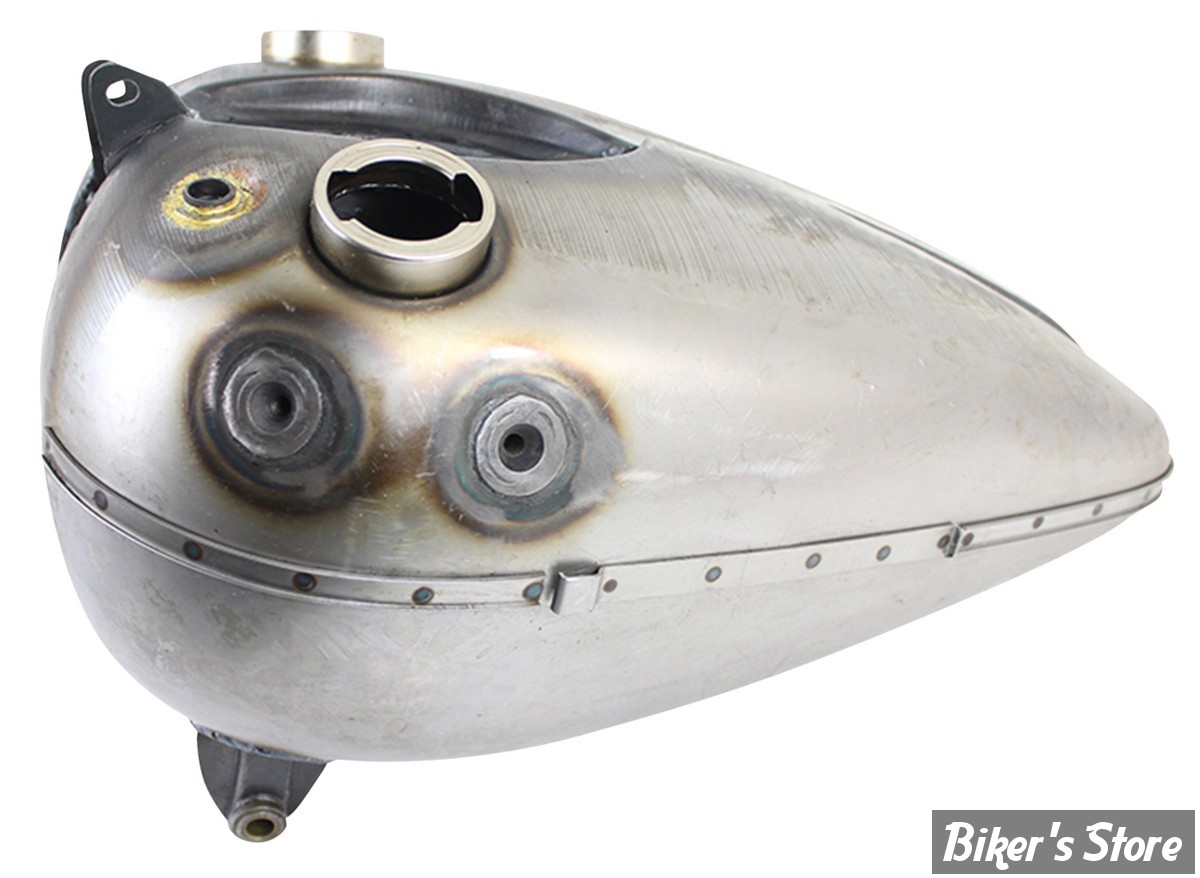

This two piece gas tank set has a fuel capacity of 3.5 gallons. Tanks set accepts a cateye dash only. The lower bracket is "C" shaped.

Tank set features handshift mounts and shut off rod provision. Order shut off rod and seat kit separately. Mount strips are welded to each side to attach emblems and stainless trim. Tank emblem mount screws not included. Order emblems and trim separately. Tank may require fuel rod alignment before installation of shut off assembly. Check the tank for flaws or fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggeset using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion. Check shutoff opening, making sure the shut off valve can be easily installed. Shut off fitting should be masked or plugged during painting for easy installation of shut off valve. All tanks or tank sets will require hand fitting to give correct alignment for dash and fuel line fitment. Dash will also have to be shimmed when installed, to achieve correct height.
